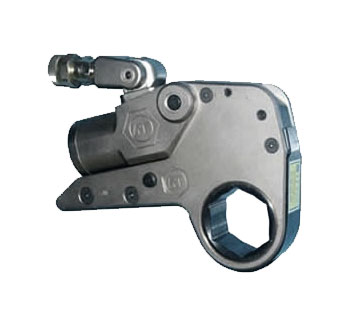

Hydraulic Torque Multipliers - RTX Series

The RTX Hydraulic Torque multiplier offer extreme low clearance.

Ring spanner style tool with a radius similar to impact sockets.

Torque can be applied to bolting you may have thought previously impossible.

These Multipliers Tools are light weight, small and fast.


Hydraulic Torque Wrenches - Sq Dr.
Hydraulic Torque Wrenches - Hex
Pneumatic Nut-runners
Porta Power
Impact Guns
Impact Sockets
Hire Torque Tools
Pumps and Hoses
Hire
Contact us

RTX
NOBAR
productRT Square Drive Tool
productRT Hex Cassette Tool
productPackages
productElectric/Air Operated Pumps
productHoses and Accessories

Page One | Page Two |

MODEL Ratchet Link Hex Size Torque Output Weight Dimensions
Ft Lbs NM L NS R W1 W2
Imperial Metric Min Max Min Max Lbs KG In mm In mm In mm In mm In mm
RTX-2 3/4 - 2-1/4 19-65 255 1710 346 2318 4.5 2 7.2 183 1/4 - 2-9/16 19-65 0.35 9 1.26 32 1.92 49
RTX-4 1" - 3-1/8 25-85 580 3855 786 5226 9.7 4.4 9.7 248 1-5/16 - 3-1/8 32-80 0.47 12 1.65 42 2.56 65
RTX-8 1-5/8 - 4-1/8 46-105 1143 8151 1549 11049 19.5 9 12.1 308 1-13/16 - 3-7/8 46-100 0.59 15 2.08 53 3.22 82
RTX-14 2-1/2 - 5-3/8 60-135 2010 13400 2725 18165 33 15 14.6 372 2 - 4-5/8 50-120 0.72 18.5 2.48 63 3.89 99
RTX-18 3-1/2 - 5-1/2 75-140 2676 17845 3628 24191 51 23 15.5 393 3" - 5-1/2 75-140 0.87 22.2 2.75 70 4.37 111
RTX-30 3-1/2 - 6-1/2 90-165 4770 31800 6466 43108 78 35.5 18 457 3-9/16 - 6-1/8 90-155 1 25.4 3.26 83 5.28 132

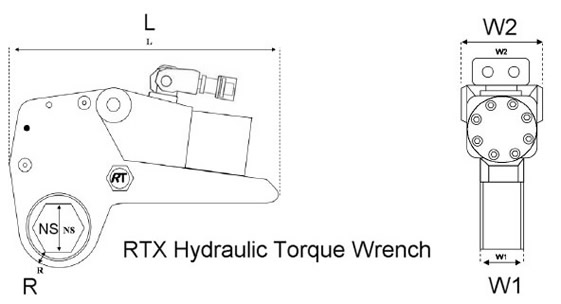

RTXRTX specs

PDF: RTX Parts List | PDF: RTX Torque Chart

Torque Wrenches

RTX - POWER HEAD

The RTX tools can be built up like a kit. You can purchase the Power Head seperate from the hex cassette.

Torque Wrenches

RTX - HEX CASSETTE / LINK

The RTX Cassettes are available in hundreds of sizes. 3/4 up to 8" a/f. You can also use inserts radius permitting. You can purchase the hex cassette separate from the Power Head.
Torque Wrenches

ALCO EXTENSION REACTION ARMS
Also known as Baseball Bats for Hydraulic Torque Multipliers. The Hydraulc Torque Multiplier arms offer more reaction options. Hydraulic Torque Multiplier in some cases may have no reaction point with the standard arm. The Alco arm can help get you out of trouble. They are available for Square Drive & Hex Cassette multipliers. Ace have these on stock for most Rapidtorc models. Reaction Arms come in many sizes for Hydraulic Multipliers. Constructed from high grade Aluminium these reaction arms are strong and light weight. To attach simply clip off the existing reaction arm and replace with the Alco arm. It is done in seconds. The Alco arm is retained by the same pin the standard head uses. We recommend using genuine Rapidtorc accessories.

RAPIDTORC RTX POWER HEAD & CASSETTE LINK:

These RTX tools allow you to solve almost any heavy industry bolt torque requirement. Mining Petrochemical Rail Shipping Quarry Injection.
